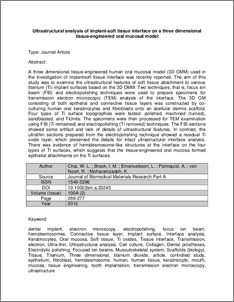

Ultrastructural analysis of implant-soft tissue interface on a three dimensional tissue-engineered oral mucosal model

Chai, W.L.; Brook, I.M.; Emanuelsson, L.; Palmquist, A.; Van Noort , R.; Moharamzadeh , K. (2012) Ultrastructural analysis of implant-soft tissue interface on a three dimensional tissue-engineered oral mucosal model. Journal of Biomedical Materials Research Part A, 100A (2). pp. 269-277. ISSN 1549-3296

PDF [error in script]
Download (29Kb) | Preview


    A three dimensional tissue-engineered human oral mucosal model (3D OMM) used in the investigation of implantsoft tissue interface was recently reported. The aim of this study was to examine the ultrastructural features of soft tissue attachment to various titanium (Ti) implant surfaces based on the 3D OMM. Two techniques, that is, focus ion beam (FIB) and electropolishing techniques were used to prepare specimens for transmission electron microscopic (TEM) analysis of the interface. The 3D OM consisting of both epithelial and connective tissue layers was constructed by co-culturing human oral keratinocytes and fibroblasts onto an acellular dermis scaffold. Four types of Ti surface topographies were tested: polished, machined (turned), sandblasted, and TiUnite. The specimens were then processed for TEM examination using FIB (Ti remained) and electropolishing (Ti removed) techniques. The FIB sections showed some artifact and lack of details of ultrastructural features. In contrast, the ultrathin sections prepared from the electropolishing technique showed a residual Ti oxide layer, which preserved the details for intact ultrastructural interface analysis. There was evidence of hemidesmosome-like structures at the interface on the four types of Ti surfaces, which suggests that the tissue-engineered oral mucosa formed epithelial attachments on the Ti surfaces.

    Item Type: Article
    1. Chai, W.L.
    2. Brook, I.M.
    3. Emanuelsson, L.
    4. Palmquist, A.
    5. Van Noort , R.
    6. Moharamzadeh , K.
    Journal or Publication Title: Journal of Biomedical Materials Research Part A
    Additional Information: Times Cited: 0
    Uncontrolled Keywords: Dental Implant Electron Microscopy Electropolishing Focus Ion Beam Hemidesmosomes Connective Tissue Layer Implant Surface Interface Analysis Keratinocytes Oral Mucosa Soft Tissue Ti Oxides Tissue Interface Transmission Electron Ultra-Thin Ultrastructural Analysis Cell Culture Collagen Dental Prostheses Electrolytic Polishing Focused Ion Beams Musculoskeletal System Scaffolds (Biology) Tissue Titanium Three Dimensional Titanium Dioxide Article Controlled Study Epithelium Fibroblast Hemidesmosome Human Human Tissue Keratinocyte Mouth Mucosa Tissue Engineering Tooth Implantation Transmission Electron Microscopy Ultrastructure
    Subjects: R Medicine > RK Dentistry
    Divisions: Faculty of Dentistry > Dept of General Dental Practice And Oral & Maxillofacial Imaging
    Depositing User: Associate Professor Dr. Wen Lin Chai
    Date Deposited: 08 May 2012 12:39
    Last Modified: 08 May 2012 12:39
    URI: http://eprints.um.edu.my/id/eprint/3045
